Overview
Custom Forms is a feature within PCR-360's Lighthouse module that allows authorized users to design, publish, and manage custom data-collection forms. Forms can be used internally within Lighthouse or made available to end users through the CustomerCenter (CC) portal.
Permission Required: Users must have the Form Builder permission to create and manage forms. End users only need access to the menu link or CustomerCenter to fill out published forms.
Where to Find It

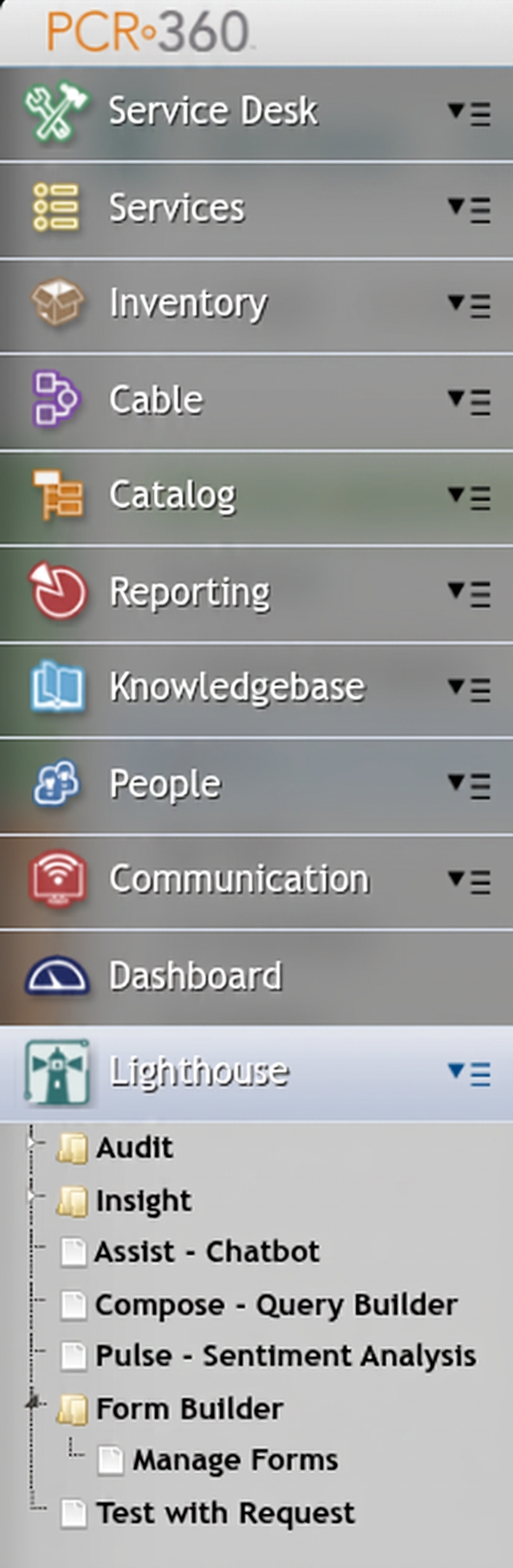

In PCR-360, navigate to Lighthouse → Form Builder → Manage Forms in the left-side navigation menu. This is the central location for creating and managing all custom forms.
Once a form is created and published, administrators can add a direct link to any Lighthouse menu folder using Settings → Add Form to Menu from within the form editor. A link to the form's submissions grid can also be added via Settings → Add Submissions to Menu.
Use Cases
-
Internal Lighthouse forms — Collect structured data from PCR-360 users (e.g., requests, surveys, intake forms). Submissions are stored and viewable in a generated Ad Hoc grid.
-
CustomerCenter forms — Expose forms to CC-only users via the CC portal. When configured with Create CC Request on Submit, a Service Desk request is automatically created and linked to each form submission.
Key Concepts
|
Concept |
Description |
|---|---|
|
Form Version |
Forms are versioned. Published versions are read-only. Use File → Create Draft to make edits, then publish when ready. |
|
Draft vs. Published |
A Draft is an in-progress version not yet visible to end users. Published versions are live and accessible. |
|
Form Key |
A unique internal identifier for the form (lowercase letters, numbers, underscores). Used in URLs and integrations. |
|
Ad Hoc Grid |
A dynamically generated grid that displays all submissions for a given form. Generated via Settings → Generate Adhoc. |
|
Request Field Mappings |
Connects form fields to CC Request fields (Description, Urgency, GLA, Owner) so submissions automatically populate those values on the resulting Service Request. |
In This Section
-
Managing Forms — The Manage Forms grid: viewing, creating, and opening forms.
-
Edit Form — The Form Builder editor: toolbar controls, sidebar sections, Basic Info, and Request Field Mappings.
-
Form Field Widgets — Reference for all available field widget types and their configuration options.
-
Form Submissions (Ad Hoc Grid) — Viewing and managing form submission data.
-
Filling Out a Form — The end-user form view experience.
-
CustomerCenter Forms — Using Custom Forms within the CustomerCenter portal.
