How to make corrections to Cabling in PCR-360

Summary

When there is a need to correct Cabling in PCR-360, the recommended way is to set up a 'Service Order' and create a 'Miscellaneous Action'.

Correcting Cable

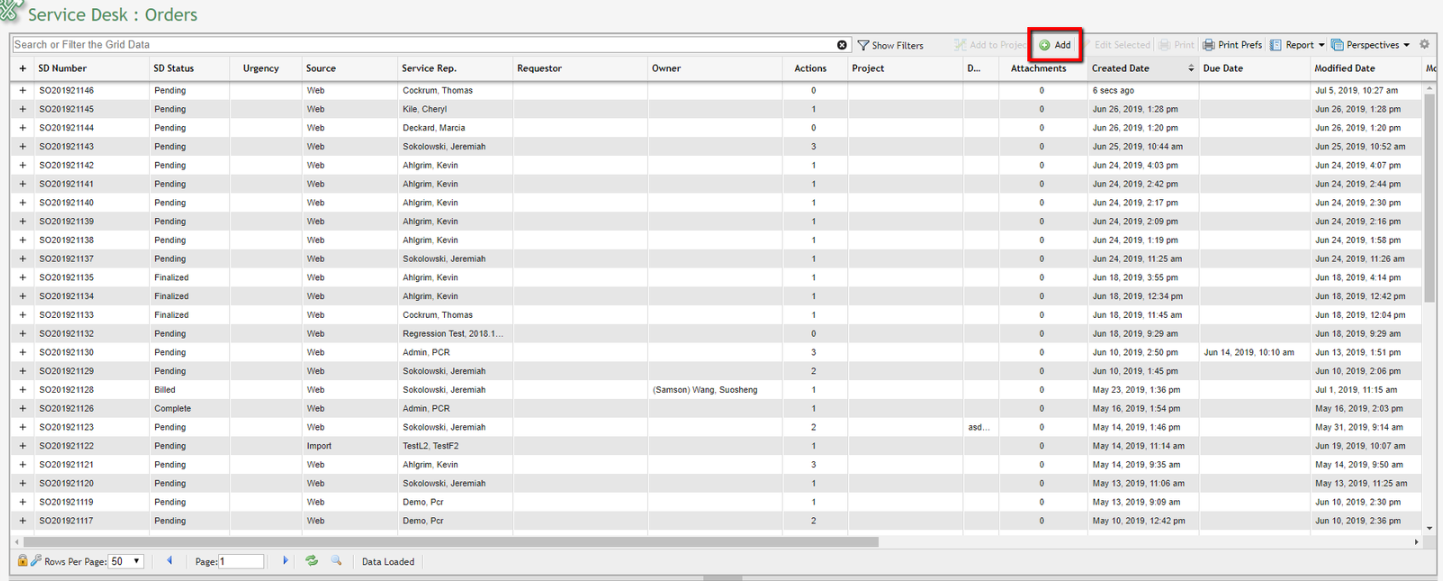

       1. Navigate to Main > Service Desk > Orders to display the Service Desk Orders Grid.

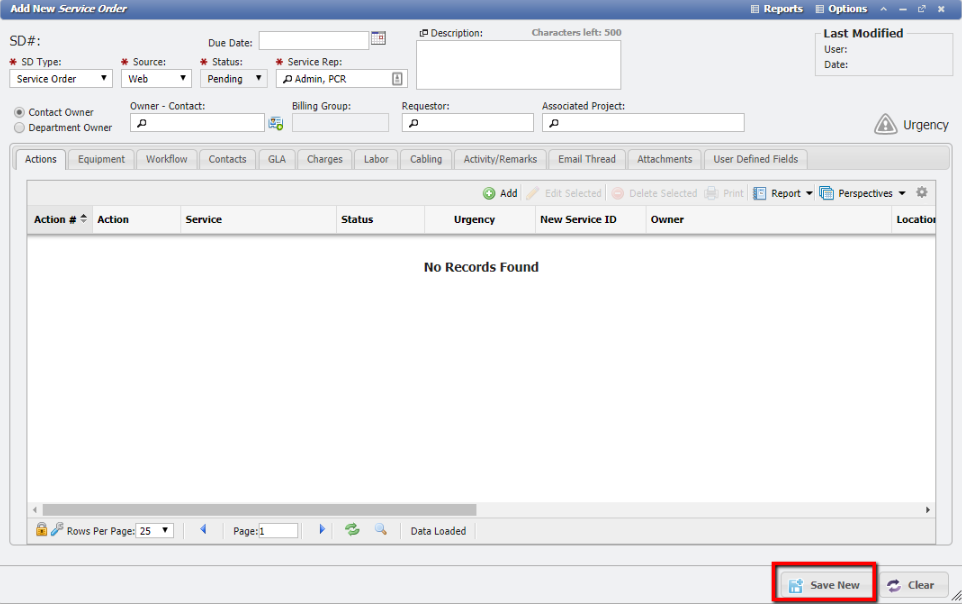

       2. Click on the  button. The Add New Service Order form is displayed.

       3. Click the   button to save the Service Order.

Note: A Service Rep may need to be selected from the Service Rep picker.

4. The Manage Service Order form is displayed.

5. Click the 'Actions Tab', then click the   button.

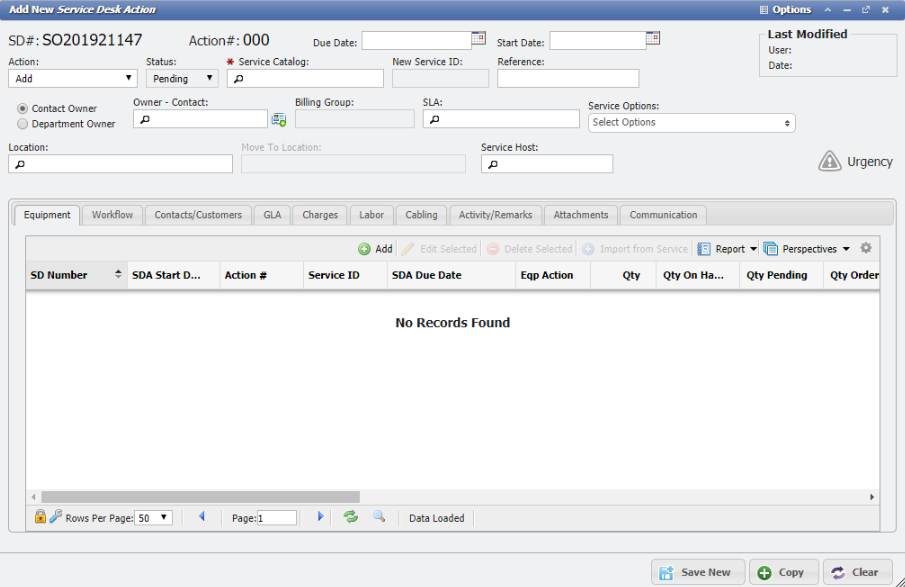

6. The Add New Service Desk Action form is displayed.

5. From the 'Action Dropdown', select 'Miscellaneous'.

6. In the Service Catalog picker select the Service that has the Cabling that needs to be corrected then click the   button.

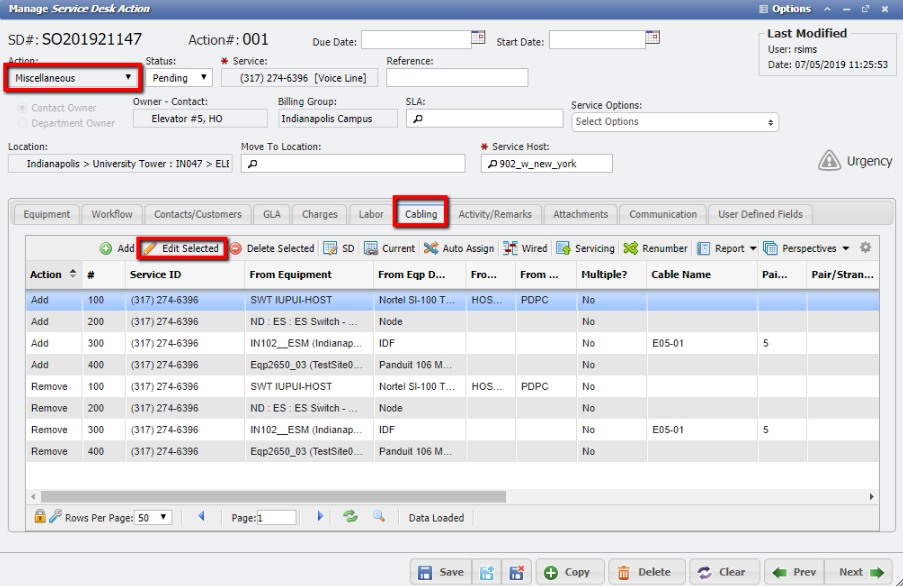

7. Navigate to the 'Cabling Tab' to find the Cabling to Edit and click thebutton.

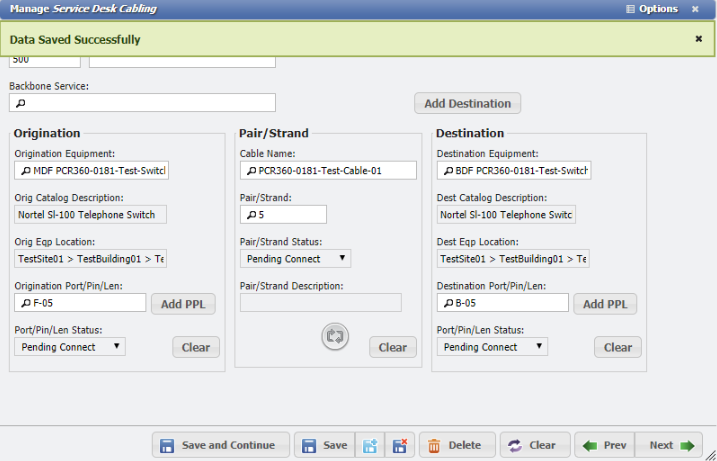

8. The Manage Service Desk Cabling form is displayed.

9. Make the desired Cable corrections then click the   button.

Note: Only 'ADD Actions' lines will be able to be edited, not the 'REMOVE Actions' lines.

10. Complete and Finalize the Miscellaneous Action to save the Cabling changes.
