Barcode Batches
License
The Barcode module requires a separate license to be installed before key parts of the functionality are available. This license is disabled by default. Please get in touch with PCR to obtain a license.
Using The Barcode Module
The Barcode module is designed to speed up regularly performed actions by using barcode scanners on Equipment in the Warehouse. Using Barcode, you can assign specific actions to multiple pieces of Equipment at once, such as adding to Inventory, transferring between Warehouses, or setting Warehouse Action status'. This module can auto-generate and attach scanned items using the Equipment Catalog records. Utilizing this system can speed up Inventory audits and the general management of a warehouse.
The Barcode Batches Grid

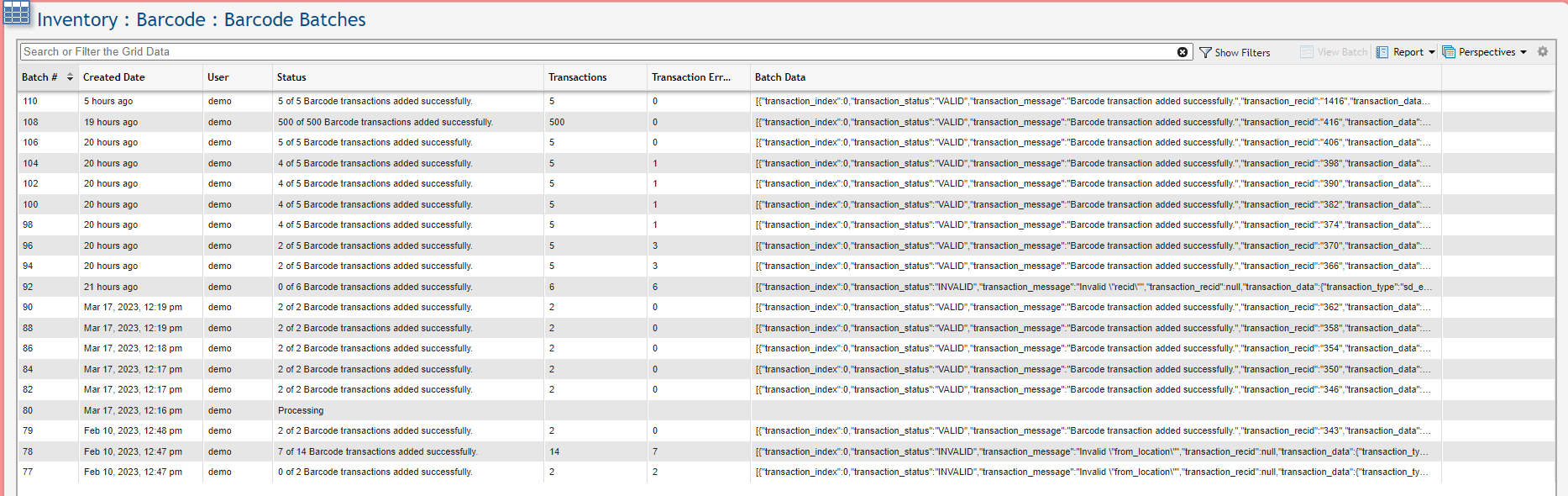

Barcode Batches Grid example
The Barcode Batches grid is a read-only grid that shows groups of Barcode Scans have occurred from the Barcode API Endpoint, from a single API call. Barcode Scanning replicates much of the functionality available within Inventory Overview and Warehouse Actions.
Barcode information is stored on the Equipment Catalog (Main > Catalogs > Equipment) for the Equipment expected to be scanned.
To view specific details on a specific Batch, select the Batch in the grid and click the
Batch Data

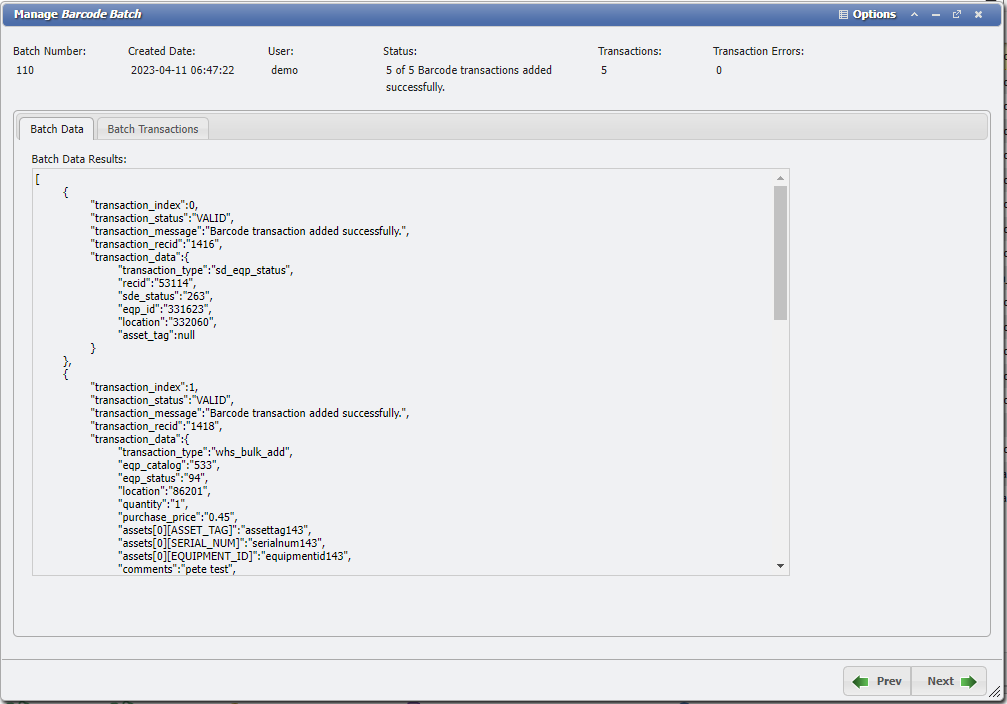

Manage Barcode Batch Data Form example
The Batch Data tab on the Manage Barcode Batch form displays the raw JSON sent to the Barcode API Endpoint containing the Batch.
Batch Transactions

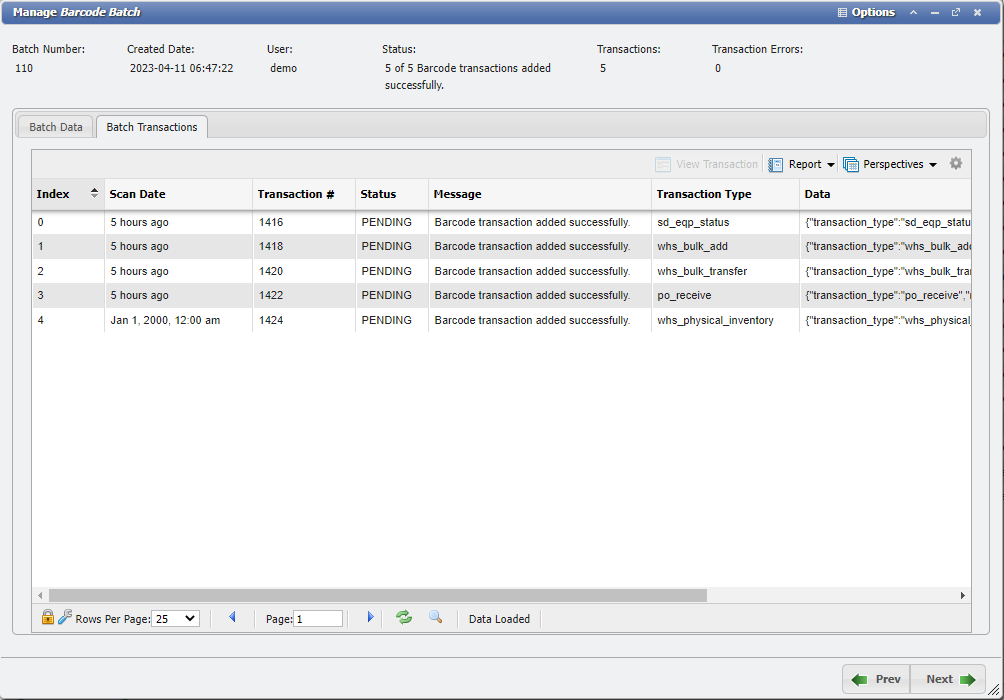

Manage Barcode Batch Transactions Form example
The Batch Transactions tab on the Manage Barcode Batch form displays each Transaction's status within the Batch. This tab also allows the User to click the
