Service Host REST API Type

The following Service Host Types may be used to interact with external REST APIs:

• Generic Rest API  - Makes generic calls to an API Endpoiint with optional Basic HTTP Authentication

• Generic Token Rest API - Makes calls to an API Endpoint with Generic Token-Based Authentication

• JSON Web Token REST API - Makes calls to an API Endpoint with JSON WEB Token-Based Authentication

For information about using Service Hosts to alert an external service about Notifications and Escalations within PCR-360, please visit our wiki article on Setting Up Escalations To Utilize The Service Host.

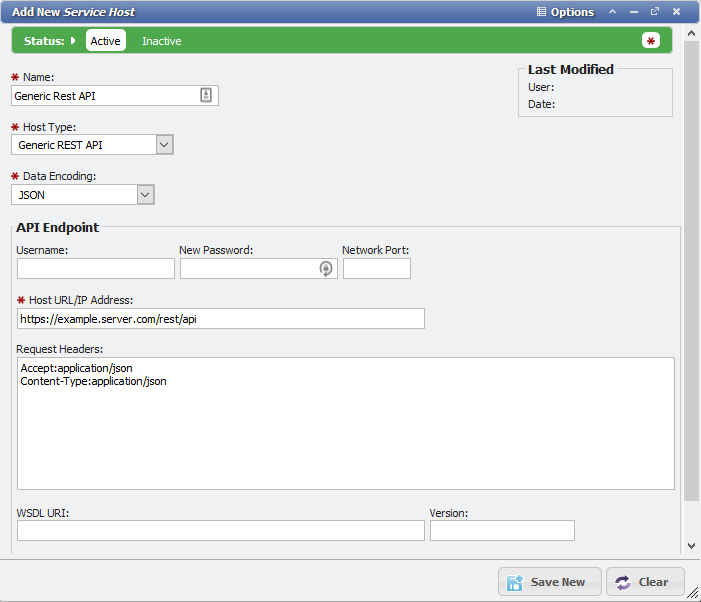

Generic Rest API

• Appropriate for API endpoints that do not require authentication

• Appropriate for API endpoints that use HTTP Basic Authentication

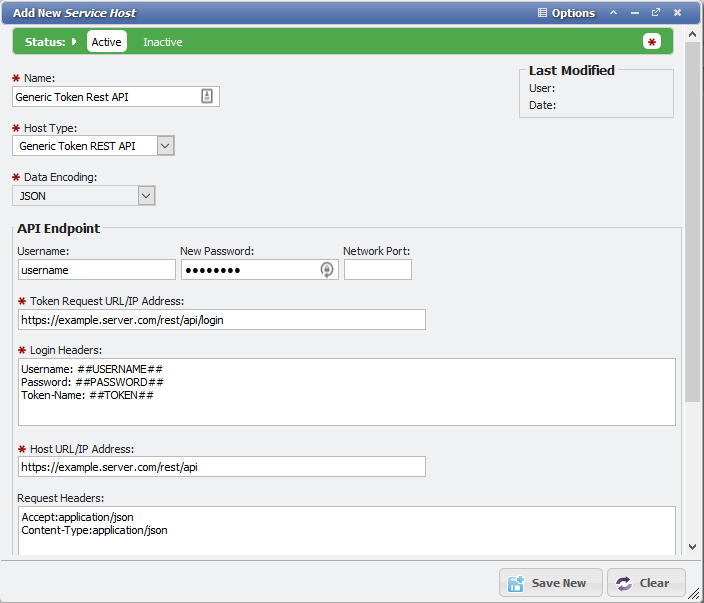

Generic Token Rest API

• Appropriate for API endpoints that use a general token authentication

• Appropriate for API endpoints where the token do not need to be decoded or read

• Able to authenticate the token via the Request Header and/or the Request Body. This is done automatically on the back end with no special configuration needed.

• Allows user to specify the key/value of the header/body username and password values in the Login Headers Field

  • Each key needs to be on a new line follow by the appropriate variable to fill in when the request is created

    • ##USERNAME## will be replaced with the the username given on the Service Host Form

    • ##PASSWORD## will be replaced with the the username given on the Service Host Form

  • For example: If the API needs to Authenticate with the headers X-Username and X-Password, those fields would look like this in the Login Headers

    CODE

    X-Username: ##USERNAME##
    X-Password: ##PASSWORD##




• Allows specification of a custom token name

  • The token line should be on its own line

  • Needs to specify the key name followed by the token variable, ##TOKEN## will be replaced with the token after authentication and used for future requests until the token expires.

  • For example, If the API needs a token called X-Access-Token, the token line would look like this:

    CODE

    X-Access-Token: ##TOKEN##

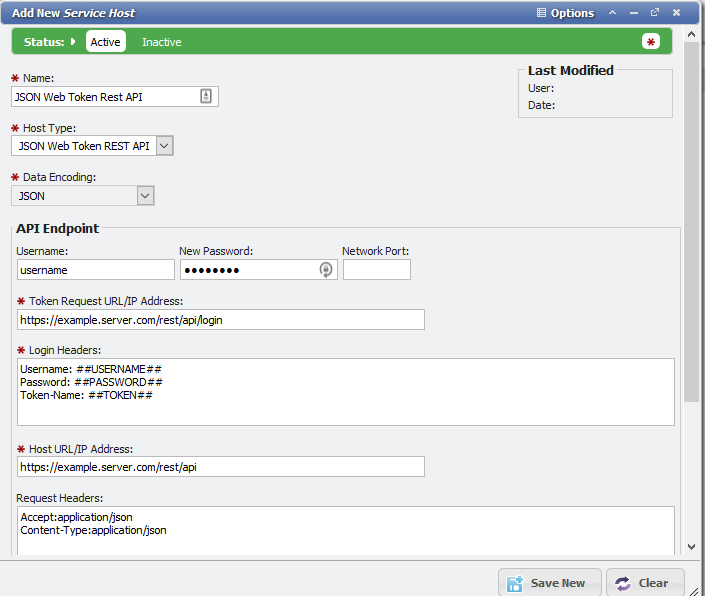

JSON Web Token REST API

• At the surface, this type works exactly like the Generic Token REST API

• The only difference is that it supports JSON Web Token protocol on the back end: https://datatracker.ietf.org/doc/rfc7519/

• This Service Host Type is appropriate for APIs that Use JSON Web Tokens, such as TimeDynamix

• Service Host authentication will allow connections to servers using self-signed certificates constants.
