AdHoc Grids
AdHoc Grids allow for the creation of data Grids based on a User-Defined SQL query; any AdHoc Grid can be used to generate reports. Knowledge of the SQL language is Required.
For information on how to access a User-Defined Field in an AdHoc Query, please see our article on UDFs.
Creating an AdHoc Grid
When writing your own AdHoc Grid can be a difficult process for an inexperienced User. PCR-360 provides useful tools in both the AdHoc Grid's Query Builder and the Data Dictionary.
Navigate to Admin > AdHoc Grids > Manage Grids.

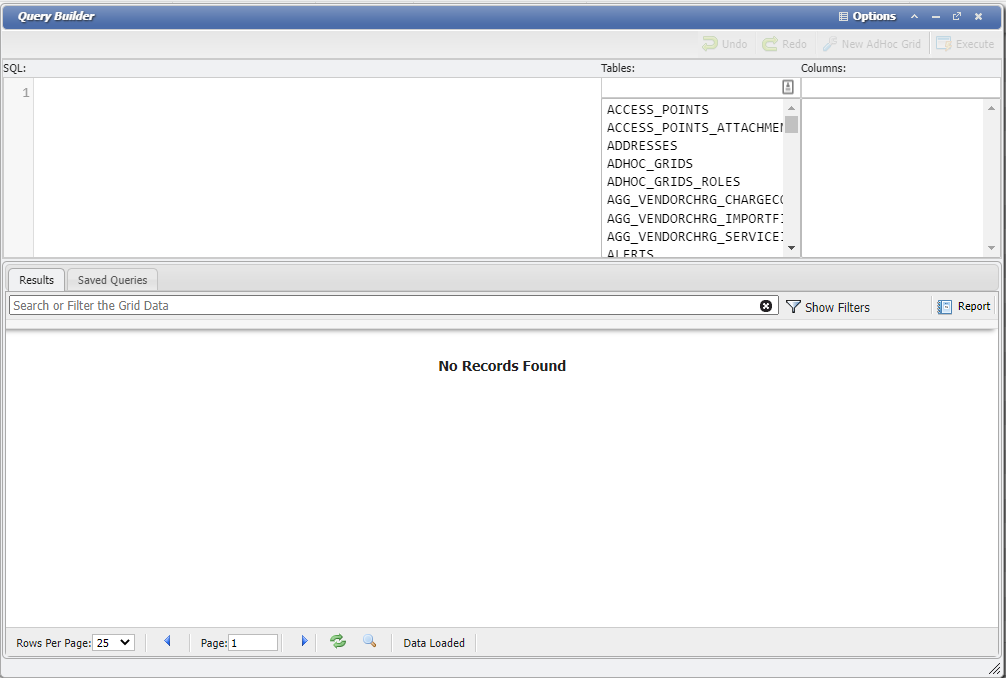

Click the
button.Enter the desired SQL Statement
Click the
button to run the Query, to confirm the desired output is provided.Click the
button, on the Saved Queries tab to save the query for use later.Click the

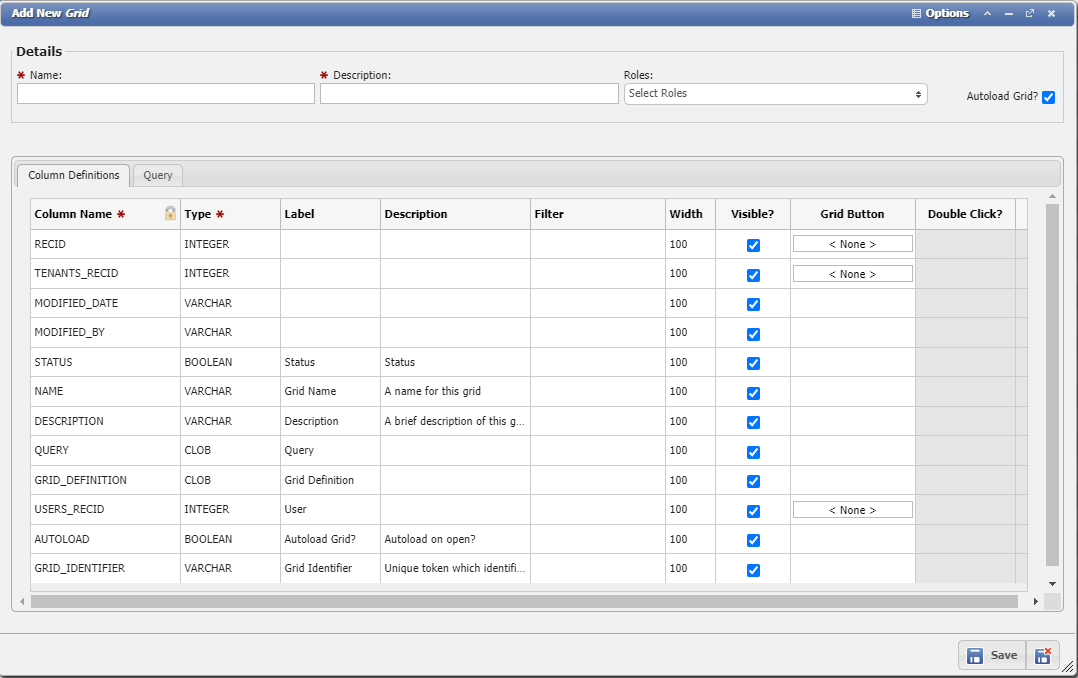

button to open the Add New Grid form, which will also move the previously run Query so it is not needed to be re-entered.Provide a Name, Description, as well as any desired Role Permissions and any other customizations to the look of the new Grid.
Click the Save button to save the Grid.
The following functions are not allowed for use: INSERT, UPDATE, DELETE, DROP, ALTER, CREATE, TRUNCATE, EMPTY, and SELECT INTO.
When writing AdHoc grids do not use spaces and other characters in the SQL column Aliases. Using characters other than UPPER-CASE and UNDERSCORE characters, the AdHoc Grid will break and cause any filters to not work.
AdHoc Grid Library
For the convenience of our customers, this Library contains pre-built AdHoc Grids that anyone may copy and add to their PCR-360 application. If you require an AdHoc query not provided by this Library, please contact your Account Manager to request Professional Services; your Account Manager will provide you with a quote to create an AdHoc tailored to your needs.
Using the Library
To load the provided queries into your Organization's instance of PCR-360, simply enter the desired query as your SQL Statement when creating an AdHoc
RECID vs. ROW ID
The usage of RECID or ROW ID is for clarity about what the RECID or ROW ID represents.
ROW IDs - Row Identification Numbers (ROW IDs) are unique IDs to the row of data in the grid they're assigned to. Some grids do not have a RECID but all grids have ROW IDs.
RECIDs - Record Identification Numbers (RECIDs) are unique IDs for records within a given table. When a grid references a specific record from a table, the Table Name is usually the column name of the RECID that the grid is referencing.
IE: SERVICES_RECID in any given grid is referencing the RECID value from the SERVICES Table.
Some table names are long and need to be abbreviated to meet the 30 character limit imposed by Oracle Databases.
There are several reasons both are used.
Some grids have multiple RECIDs and a ROW ID is unique to that row of data in the grid.
Some grids don’t have a RECID and the ROW ID is unique to that row of data.
Some ROW IDs are actually combined RECIDs for two or more records in the row.
Library of AdHoc Queries
Cable Locations Report Query
Service Desk Cabling Query
Inventory Reorder Details Report
Duplicate MAC Address Locator Query
